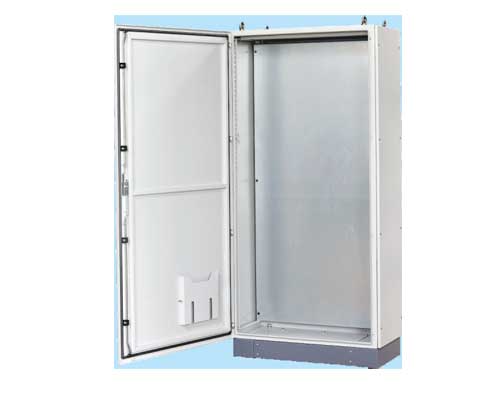

Modular Floor Standing Extensible Enclosure Eco MMC manufacturer and supplier in India by Excel Enclosures Pune Maharashtra India.

We Excel Enclosures are leading manufacturer and supplier of Modular Floor Standing Extensible Enclosure Eco MMC in India | Excel Enclosures Pune Maharashtra India.

Features

Very Much Economical Construction.

Perfect Strength to weight ratio.

Better Ingress protection (Up to Ip-55).

Sub-assemblies

Frame structure: 1.5/2. 00 thk folded CRCA sheet with vertical and horizontal (depth) indexing holes of dia 9 & in 4.2 in pitch 12.5mm.

Base: 3.00 thk folded sheet with removable front and rear cover in 1.5 thk.

Door: Front & rear single door/split door/partial door in 2.00 /1.5 thk CRCA heet. With support channels, sheet metal special hinges, 3/4 point handle lock, cam lock.

Cover: When door not necessary at rear screwed cover in 1.5 thk.

Gland plate: Screwed at top or bottom in 2.00thk CRCA.

Side cover: Screwed side cover in 1.5 thk CRCA sheet.

Top and Bottom: In 1.5 /2.00 thk CRCA sheet welded.

C' Plate: In 2.00 thk /3.00 thk as per requirement maximum size is (W) x (H-100)

Inter panel separator: Made in 1.5 thk vertical or horizontal.

Lifting eye bolts: Hooks are used for normal weight & heavy duty angles for bigger enclosures.

Standard sizes :

Width	Depth	Height	Base
300mm ~1200mm in pitch of 100mm. Up to 1000 mm width single door can be provided & above 1000mm split doors are recommended. Up to 1200mm width single welded structure can be provided & above 1000mm two Separate structure or twin welded structure is recommended.	300mm ~ 600mm in pitch of 50mm.	600mm ~ 22000mm in pitch of 100mm.	75mm, 100mm, 150mm and 200mm.

Superior Quality... Engineered Design... Fine Aesthetic Enclosures...
